- Designed for use in a wide variety of PA applications and DJ performances.

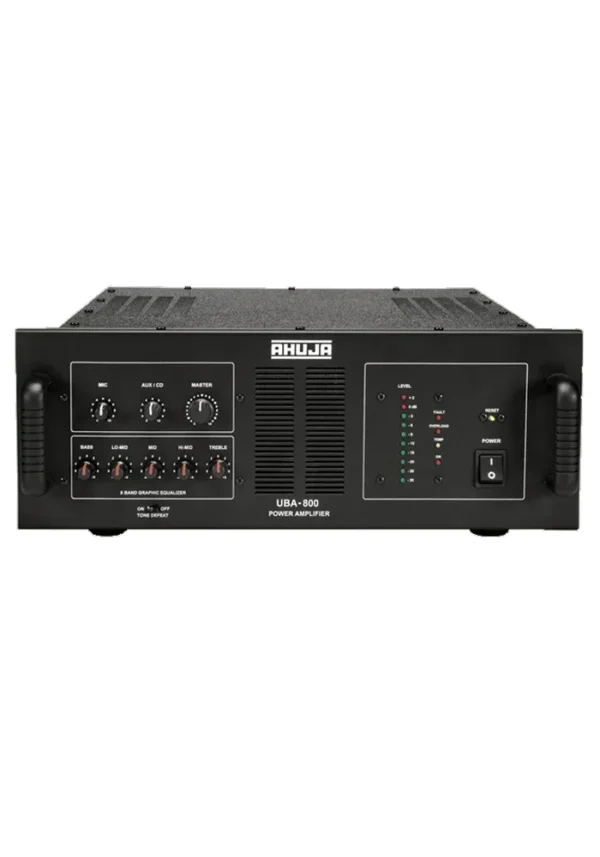

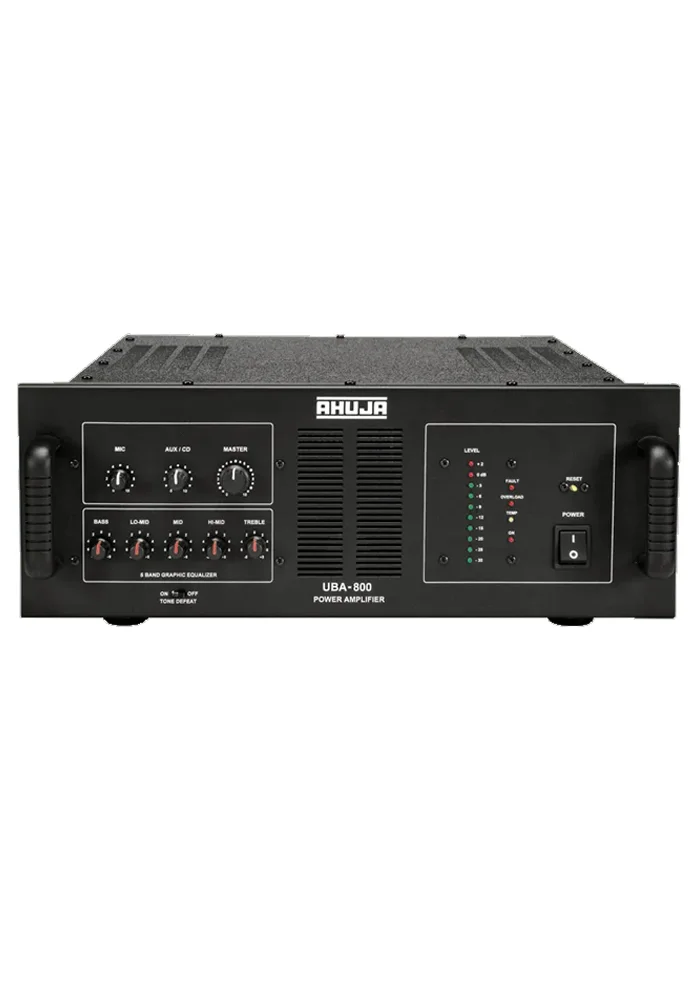

- Ahuja UBA-800 power amplifier is an 800 Watts amplifier that can be connected to various input sources like a Microphone, PA Mixer, DJ Mixer, CD Player, Cassette Player, Keyboard, etc.
- The amplifier includes a built-in 5 Band Graphic Equalizer with a tone ON/OFF switch which enables precise and accurate tonal setting of the program.
- Line Input and Line Output have been provided to enable interconnections with other power amplifiers.
- Circuit Protector Device has been provided which safeguards the amplifier against overload and short circuits.
- The amplifier has built-in protection against overvoltage in the AC mains supply which is especially useful while operating on a Genset.
- Indicator LEDs for Power, Signal, Temp, Overload, and Fault conditions have been provided.
- 2Ω speaker matching provided in addition to 4 & 8Ω
| Power Output | 1150W RMS Max., 800W RMS at 10%THD, 770W RMS at 5% THD 725W RMS at 2% THD |
| Output Regulation | ≤ 2dB, no load to full load at 1kHz |
| Input Channels | 1 × Mic 1mV / 4.7kΩ, 1 × Aux 100mV / 470kΩ, 1 × Aux 250mV / 20kΩ, 1 × CD 250mV / 20kΩ, 1 × Line 1V / 10kΩ |
| Frequency Response | 50Hz–18,000Hz ±3dB |
| Signal-to-Noise Ratio | 60dB |
| Tone Controls | Bass (100Hz) : ± 8dB, Lo-Mid (315Hz) : ± 8dB, Mid (1kHz) : ± 8dB, Hi-Mid (3.1kHz) : ± 8dB, Treble (10kHz) : ± 8dB |
| Line Output | 1V/1kΩ |
| Speaker Output | 2Ω, 4Ω & 8Ω |
| Power Supply | AC: 220-240V 50/60Hz |
| Protections | 2 × 25 Amp fuse in ± DC supply 8 Amp circuit breaker in AC mains, Protected against high AC mains voltage, overload & temperature |
| Power Consumption | 1500 VA |
| Dimensions | W482 × H186 × D530 mm |
| Weight | 32.0kg |
