- Line Input 200mV/1V switchable for connecting a mixer or another amplifier.
- Resettable circuit breaker for protection against overload and short circuits.
- Instant transfer to DC power (Car Battery) if AC power fails.
- Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.

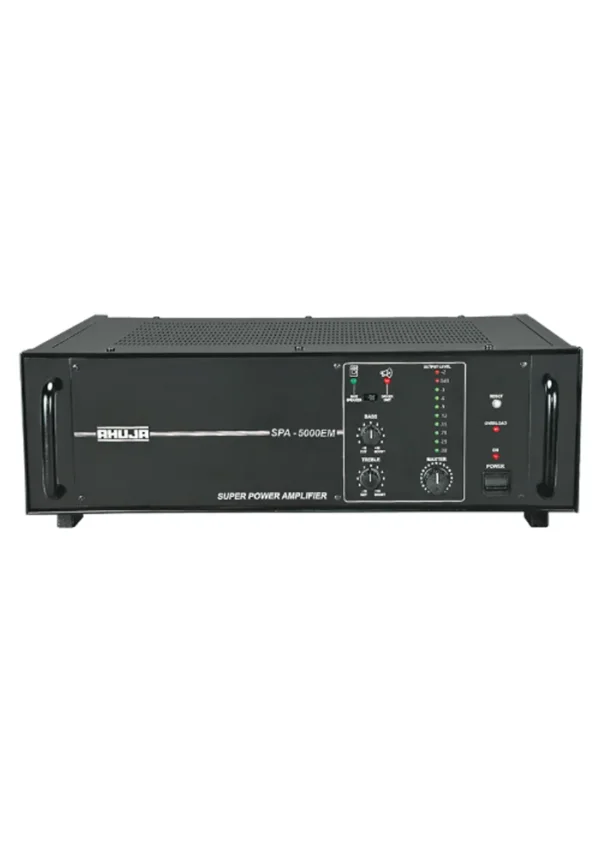

- Ideal for large installations where a high power output is required. A combination of an SSA-5000EM and one SPA-5000EM can deliver 1000W power output.
| Power Output | 750W Max., 500W RMS at 10% THD, 450W RMS at 5% THD, 415W RMS at 2% THD |
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | 1 × Line 200mV/100kΩ, 1 × Line 1V/50kΩ |
| Frequency Response | 50-15,000Hz ±3dB |
| Signal-to-Noise Ratio | 60dB |
| Tone Controls | Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
| Speaker Outputs | 4Ω, 8Ω, 70V & 100V |
| Power Supply | AC: 220-240V 50/60Hz DC: 36V (3×12V Car Battery) |
| Power Consumption | AC: 1000VA DC: 8A |
| Dimensions | W510 × H172 × D385 mm |
| Weight | 25.7kg |
