Description

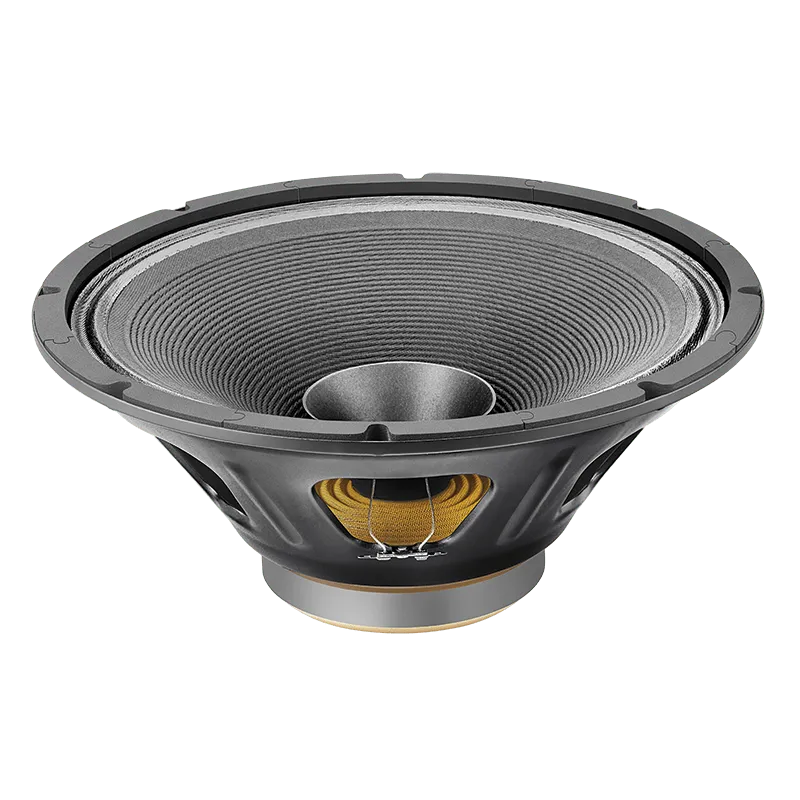

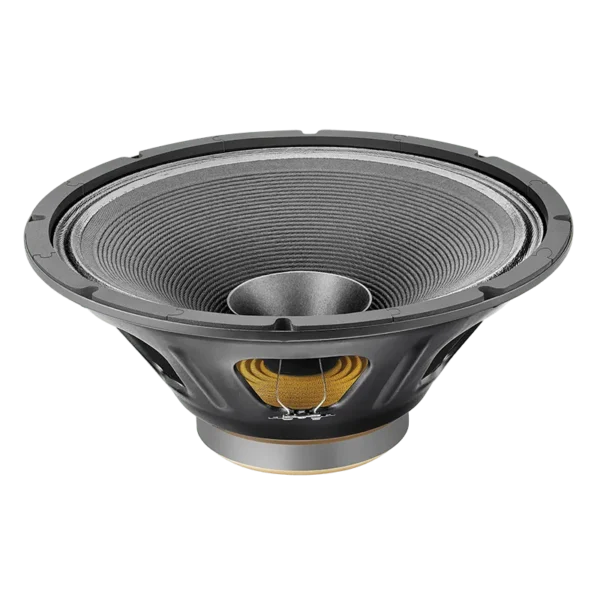

  • It is a 38.1cm (15″) high quality dual cone full range PA speaker with a very wide frequency range 50-16,000Hz.
  • Impedance of SK-15FRX is 8Ω and SK-15FRZ is 16Ω.
  • High quality specially designed imported parts for low distortion and clean sound.
    Power Rating 200W RMS
    Nominal Diameter 380mm ( 15 Inch )
    Nominal Impedance 8Ω/16Ω
    Sensitivity (1W/1m ) 98 dB
    Magnet Weight 1.54kg
    Resonant FrequenceY (Fs) 75Hz
    DC resistance (Re) 6.5Ω/11.0Ω
    Electromagnetic Q (Qes) 0.91
    Mechanical Q (Qms) 5.07
    Total Q (Qts) 0.77
    Compliance Equivalent Volume (VAS) 75.11Litr
    Surface Area of Cone (Sd) 830cm2
    Reference Efficiency (ηo) 3.18%
    Voice Coil Diameter 2.0”
    Overhang (Xmax) 4.0 mm
    Moving Mass (Mms) 60.62gm
    BL Product (BL) 14.23TM
    Coil Inductance (Le) 0.78mH
    Overall Diameter 385 mm
    Depth 165 mm
    Baffle Hole Diameter 355 mm
    Bolt Mount Diameter (PCD) 373 mm (8 Bolts)
    Weight 4.90kg
Additional information
Weight 4.90 kg
Dimensions 16.5 × 35.5 × 37.3 cm
