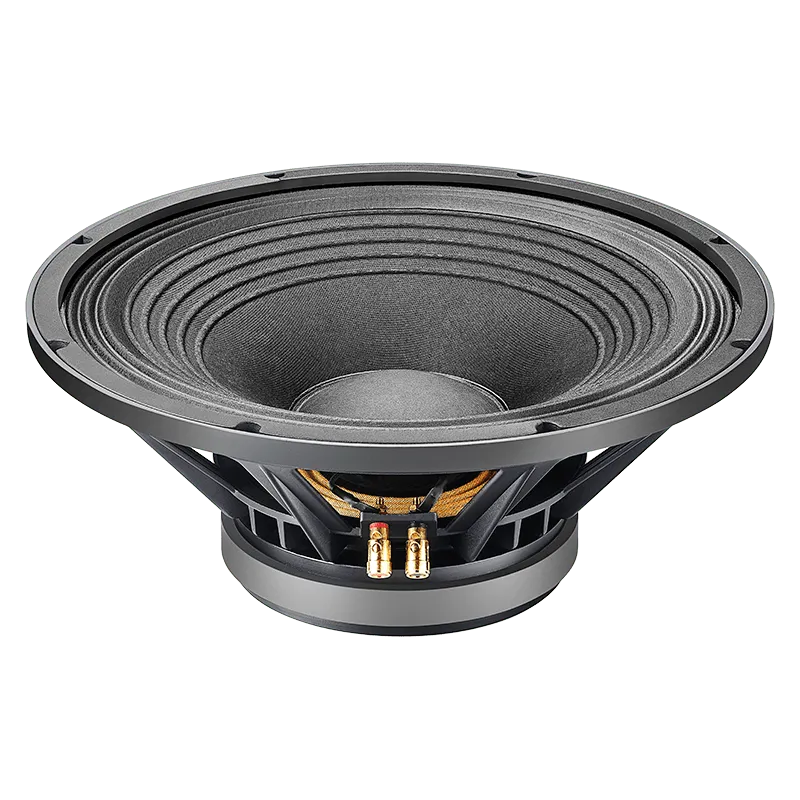

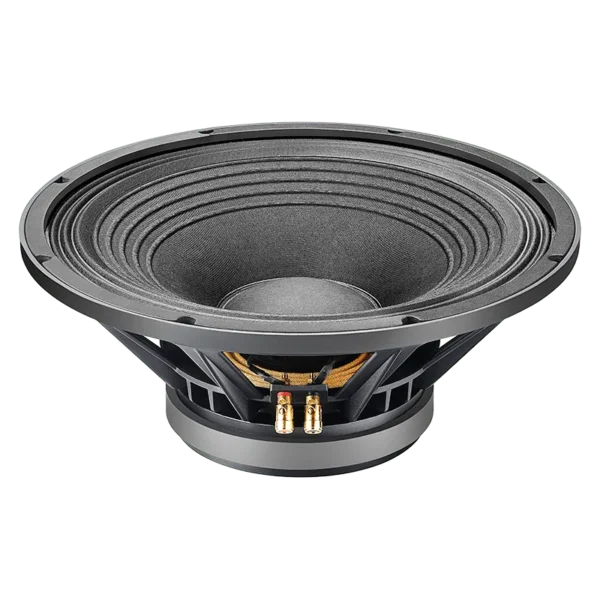

Ahuja L15-MB400 15”Inch 400watts Speaker

Ahuja L15 MB400 – A 400W 15 inch speaker.

• Excellent low and mid frequency response.
• Ideal for high power 2-Way Speaker Systems.
• Triple roll, exponential cone geometry.
• High temperature copper clad aluminium wire voice coil wound on polyamide former.


  Power Rating	400W RMS
  Nominal Diameter	380mm ( 15 Inch )
  Nominal Impedance	8Ω
  Sensitivity (1W/1m )	99dB
  Magnet Weight	2.31kg
  Resonant Frequencey (Fs)	40Hz
  DC resistance (Re)	6.5Ω
  Electromagnetic Q (Qes)	0.41
  Mechanical Q (Qms)	8.0
  Total Q (Qts)	0.39
  Compliance Equivalent Volume (VAS)	168Litr
  Surface Area of Cone (Sd)	855cm2
  Reference Efficiency (ηo)	2.72%
  Voice Coil	3.0”
  Moving Mass (Mms)	91gm
  BL Product (BL)	18TM
  Coil Inductance (Le)	1.1mH
  Overall Diameter	389.5 mm
  Depth	157 mm
  Baffle Hole Diameter	350 mm
  Bolt Mount Diameter (PCD)	369 mm (8 Bolts)
  Weight	7.8kg
