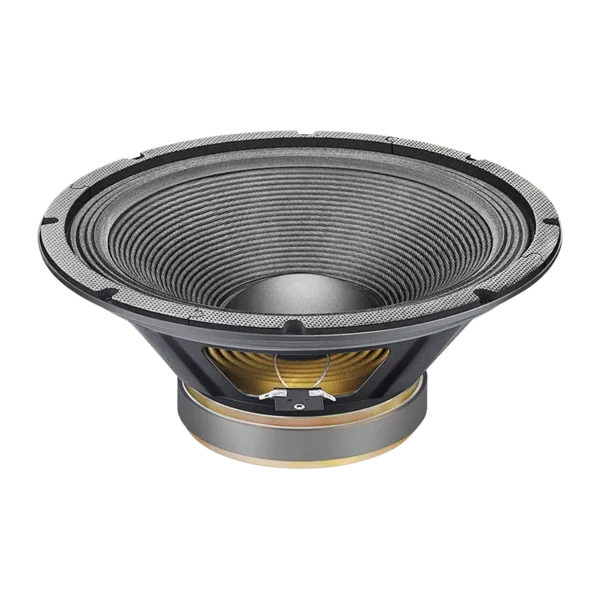

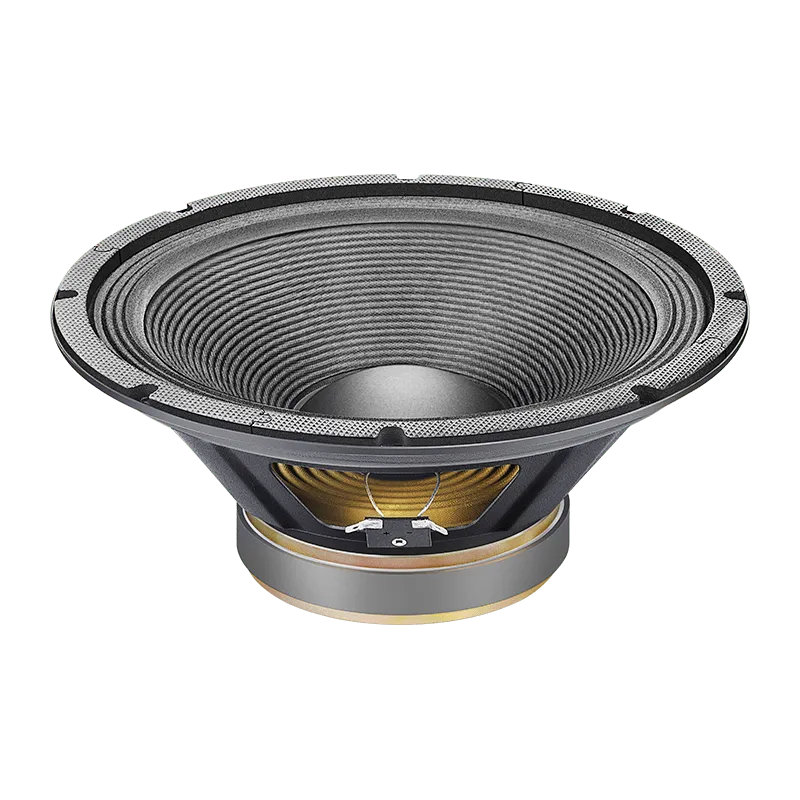

- Ahuja L12 MB200 is specially designed for use in medium power compact 2-Way speaker systems. Suitable for bass-midrange and monitoring applications.
- Robust steel frame and plasticized cloth edge composite cone.
- KAPTON former 5.08cm (2.0”) copper voice coil for withstanding high temp.
Power Rating 200W RMS Nominal Diameter 305mm ( 12 Inch ) Nominal Impedance 8Ω Sensitivity (1W/1m ) 97dB Magnet Weight 1.16 Kg Resonant Frequencey (Fs) 45Hz DC Resistance (Re) 7Ω Electromagnetic Q (Qes) 0.46 Mechanical Q (Qms) 4.67 Total Q (Qts) 0.42 Compliance Equivalent Volume (VAS) 135Litr Surface Area of Cone (Sd) 510cm2 Reference Efficiency (ηo) 1.35% Voice Coil 2.0” Overhang (Xmax) 2.5 mm Moving Mass (Mms) 51.9gm BL Product (BL) 13.42TM Coil Inductance (Le) 0.89mH Overall Diameter 313 mm Depth 127 mm Baffle Hole Diameter 285 mm Bolt Mount Diameter (PCD) 295 mm (8 Bolts) Weight 4.16kg
