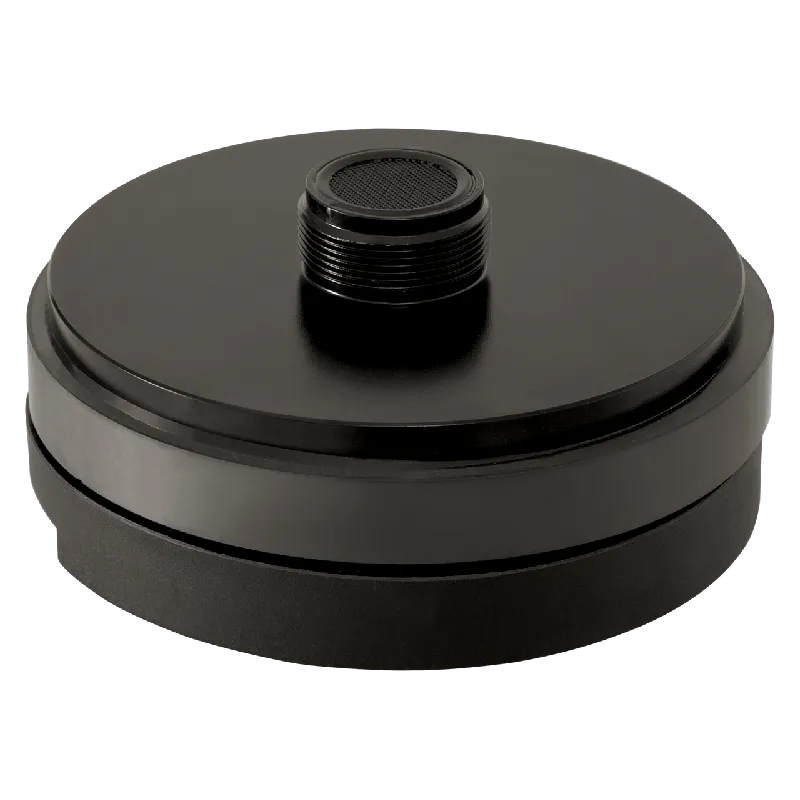

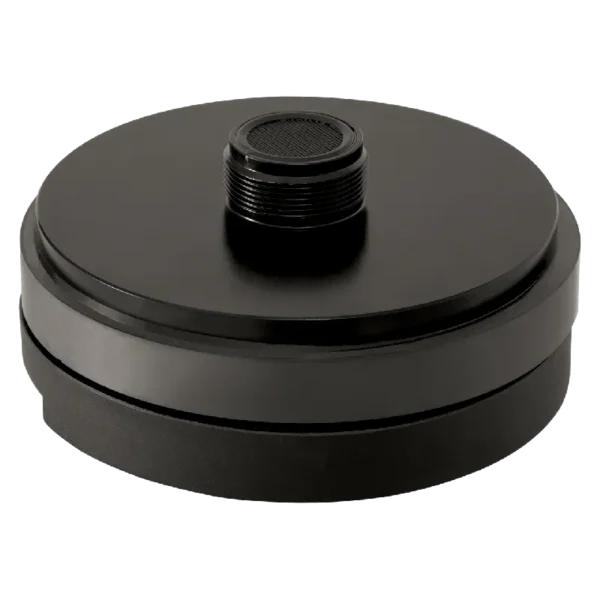

Professional compression driver CD-80, suitable for high power speaker systems. It features TITANIUM diaphragm EDGE WOUND copper clad aluminium ribbon wire voice coil and strontium ferrite magnet for high SPL & superb HF response. With a suitable horn it is ideal for use with low frequency speakers AHUJA L15-MB300, L15-MB400 and L15-MB500.
| Power Capacity | 80W RMS |
| Throat Diameter | 25.4 mm (1”) |
| Nominal Impedance | 8Ω |
| Sensitivity (1W/1m ) | 108dB (with Horn) |
| Usable Frequency Range | 1.5kHz-18kHz |
| Recommended Crossover | 2.5kHz 18db/oct |
| Voice Coil Diameter | 44.4 mm |
| Diaphragm Material | Titanium |
| Voice Coil Material | Edge Wound Copper Clad Aluminium Ribbon Resin Bonded Kapton |
| Overall Dimensions | Ø134 × H75 mm |
| Weight | 2.67kg |
