Description

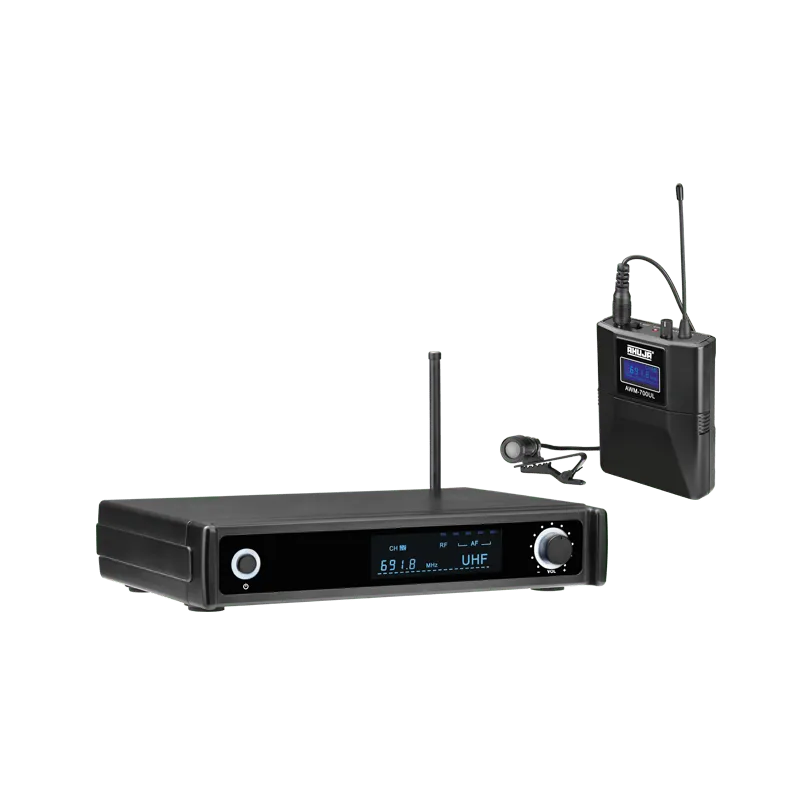

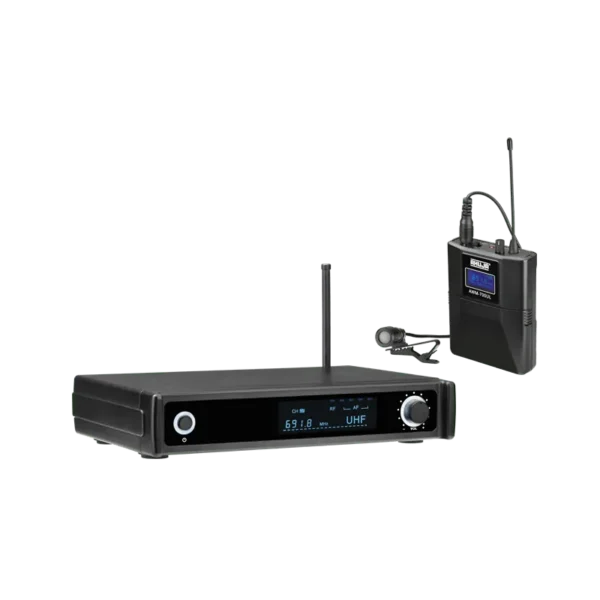

  • Attractive and versatile high performance single channel UHF wireless microphone available in different frequencies.
  • Receiver has built-in 6.3mm (¼”) jack for unbalanced audio output and XLR connector for balanced audio output.
  • Volume control knob & Fequency display on the front panel of the receiver.
  • One bodypack transmitter, operating on 2×1.5V AA pencil cells.
  • Bodypack transmitter has a two position slide switch for ON/OFF and one volume control.
  • Receiver operates on 12V DC through an AC adaptor supplied alongwith the transmitter.
  • Ideal for: PA Applications… Stage & Auditoriums… Stadia… Seminar Halls… Places of Worship… Recreation Centres…
    TRANSMITTER .
    RF Output Power 15mW (Max.)
    Modulation Mode FM
    Microphone Element Condenser, Omnidirectional
    Dynamic Range 80dB
    Frequency Response 80-15,000Hz
    Current Consumption ≤ 130mA
    Power Requirement 3V (2 × 1.5V AA Pencil Cells)
    Controls ON/OFF Switch, Volume Control
    Indications Red LED for indicating transmitter ON, Frequency Display
    Dimensions W67 x H32 x D95 mm
    Weight 60g (w/o battery)
    RECEIVER .
    Audio Output Bal. 0dBu, Unbal. -10dBu
    S/N Ratio 90dB
    Distortion ≤1%
    Frequency Response 50-15,000Hz
    Dynamic Range >90dB
    Power Requirement 240V AC 50Hz from AC Adaptor (supplied along with)
    Controls ON/OFF Switch, Volume Control
    Indications LEDs for RF & Audio Signal, Channel Frequency Display
    Dimensions W210 × H42 × D147 mm
    Weight 372g
Additional information
Weight 0.490 kg
Dimensions 21 × 4.2 × 14.7 cm
