Description

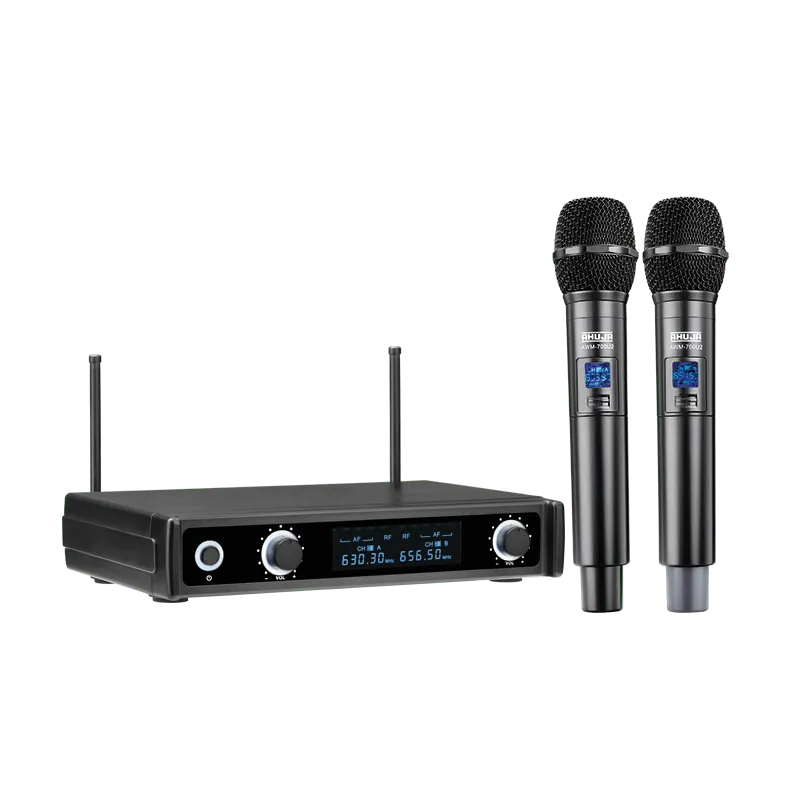

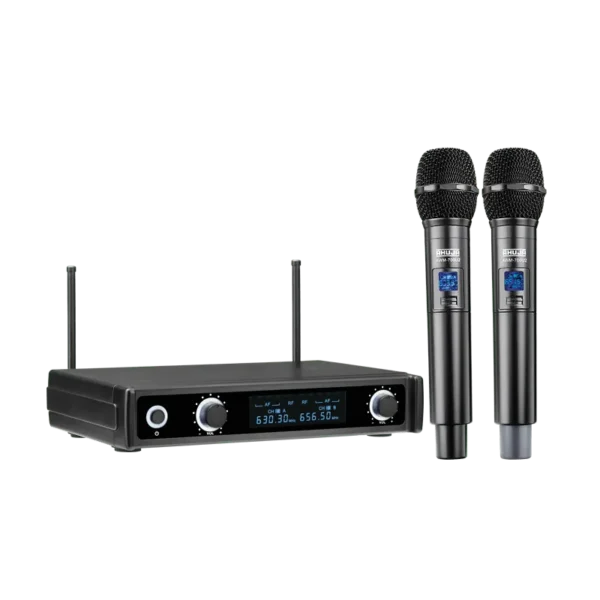

  • Elegant & affordable high performance dual channel wireless microphone available in eight pairs of frequencies.
  • Separate volume control for both channels on the front panel of the receiver.
  • Two handheld dynamic transmitters, each operating on 2 × 1.5V AA pencil cells
  • Separate balanced audio output from each channel and an unbalanced mixed output available from the receiver.
  • Receiver operates on 12V DC through an AC adaptor.
    Handheld Transmitter .
    RF Output Power 10mW (Max.)
    Carrier Frequency Range 630-664MHz
    Frequency Stability ±0.005%
    Modulation Mode FM
    Microphone Element Dynamic, Cardioid
    Frequency Response 50-15,000Hz
    Power Requirement 3V (2 × 1.5V AA Pencil Cells)
    Current Consumption < 150mA
    Controls POWER ON/OFF switch
    Indication Channel Frequency Display
    Dimensions Ø55 (L 250) mm
    Weight 0.22kg (w/o battery) approx.
    Receiver .
    Audio Output (Nominal) Bal. 0dBu, Unbal. -10dBu
    S/N Ratio 100dB
    Distortion <1%
    Frequency Response 50-15,000Hz
    Dynamic Range >90dB
    Power Requirement 240V AC 50Hz from AC Adaptor (supplied along with)
    Controls ON/OFF Switch, Volume Controls for Channel A & B
    Indications LEDs for RF & Audio Signal of Channel A & Channel B, Channel Frequency Display
    Dimensions W210 × H47 × D165 mm
    Weight 0.42kg. approx.
Additional information
Weight 0.625 kg
Dimensions 21 × 4.2 × 14.7 cm
