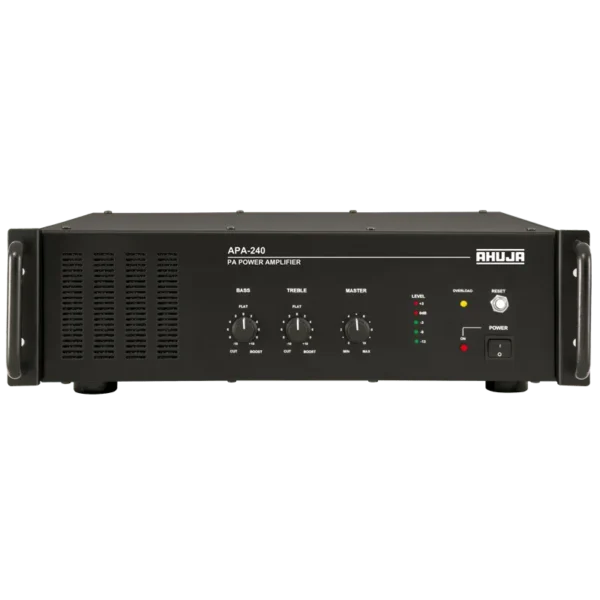

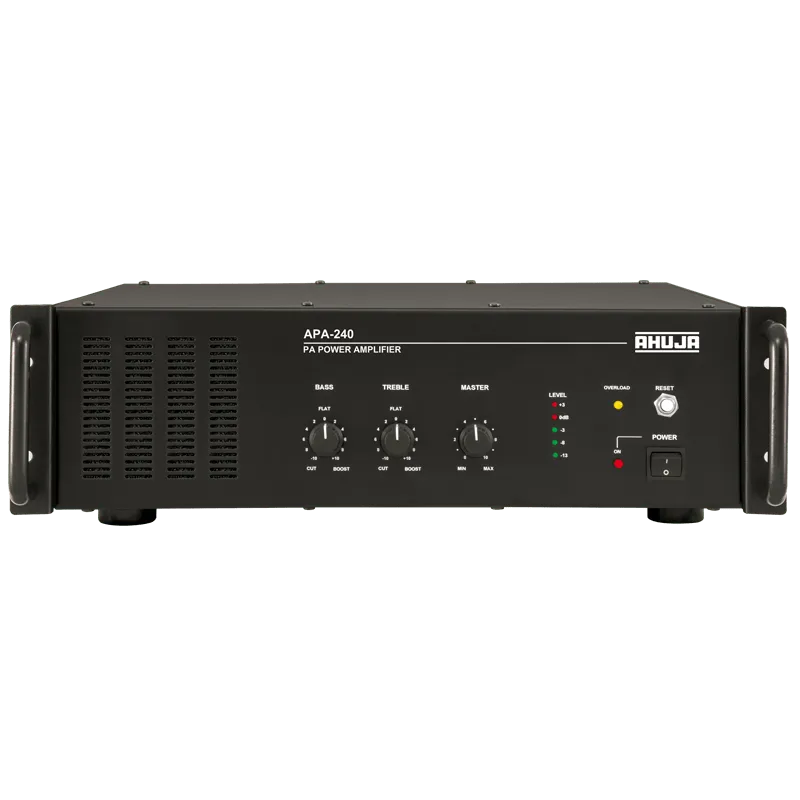

- High quality booster amplifier in standard 19” rack mountable chassis, suitable for both table-top use and rack mounting. Ideal for fixed installations and a wide variety of PA applications such as in departmental stores, schools, hospitals etc.
- 1x Line 200mV unbalanced input and 2xLine 1V balanced inputs through XLR connector, one 1V input having priority over all other inputs.
- 100V input is provided for connecting another amplifier’s output in long line applications.
- Ground lift switch provided at rear panel which helps reducing the hum that occures due to multiple ground loops in the installations.
- Resettable circuit breaker for protection against overload and short circuit.
- Loop through output for connecting another booster amplifier.
- 19” Rack mountable chassis.
- Instant transfer to DC power (Car Battery) if AC power fails
Power Output 415W Max., 325W RMS at 10% THD, 300W RMS at 5% THD, 275W RMS at 2% THD Output Regulation ≤ 2 dB, no load to full load at 1kHz Input Channels 1 × 200mV/470kΩ (unbal.), 2 × 1V/50kΩ (bal.), 1 × 100V Input Frequency Response 50-15,000Hz ±3dB Signal to Noise Ratio 60dB Tone Controls Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz Outputs Loop through 1 × 200mV/600W, 2 ×1V/1kW Speaker Outputs 4Ω, 8Ω, 70V & 100V Power Supply AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery) Power Consumption AC: 600VA DC: 7A Dimensions W485 × H142 × D405 mm Weight 20.6kg
People Also Viewed
-
Orpat HHB-100E WOB 250-Watt Hand Blender (White)
₹720.00
-
BOSCH Professional GSB 500 RE Corded
₹4,350.00
-
Artis Wireless Portable Bluetooth Speaker With LED Torch Light, Mic BT 18
₹1,249.00
-
JBL Flip 5 Wireless Bluetooth Speaker
₹7,500.00
-
Bajaj 140TS 1400 W Induction Cooktop | Insect Protection
₹2,149.00
Description
Additional information
| Weight | 20.60 kg |
|---|---|
| Dimensions | 40.5 × 48.5 × 14.2 cm |
